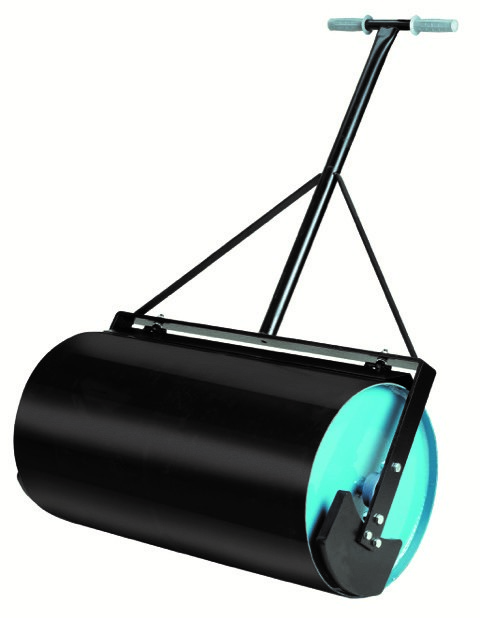

For tennis courts and sports grounds. Working width 90 cm, empty weight 60 kg, water filled 180 kg. Single-piece roller body with rounded edges and optional to choose with or without counter weights.

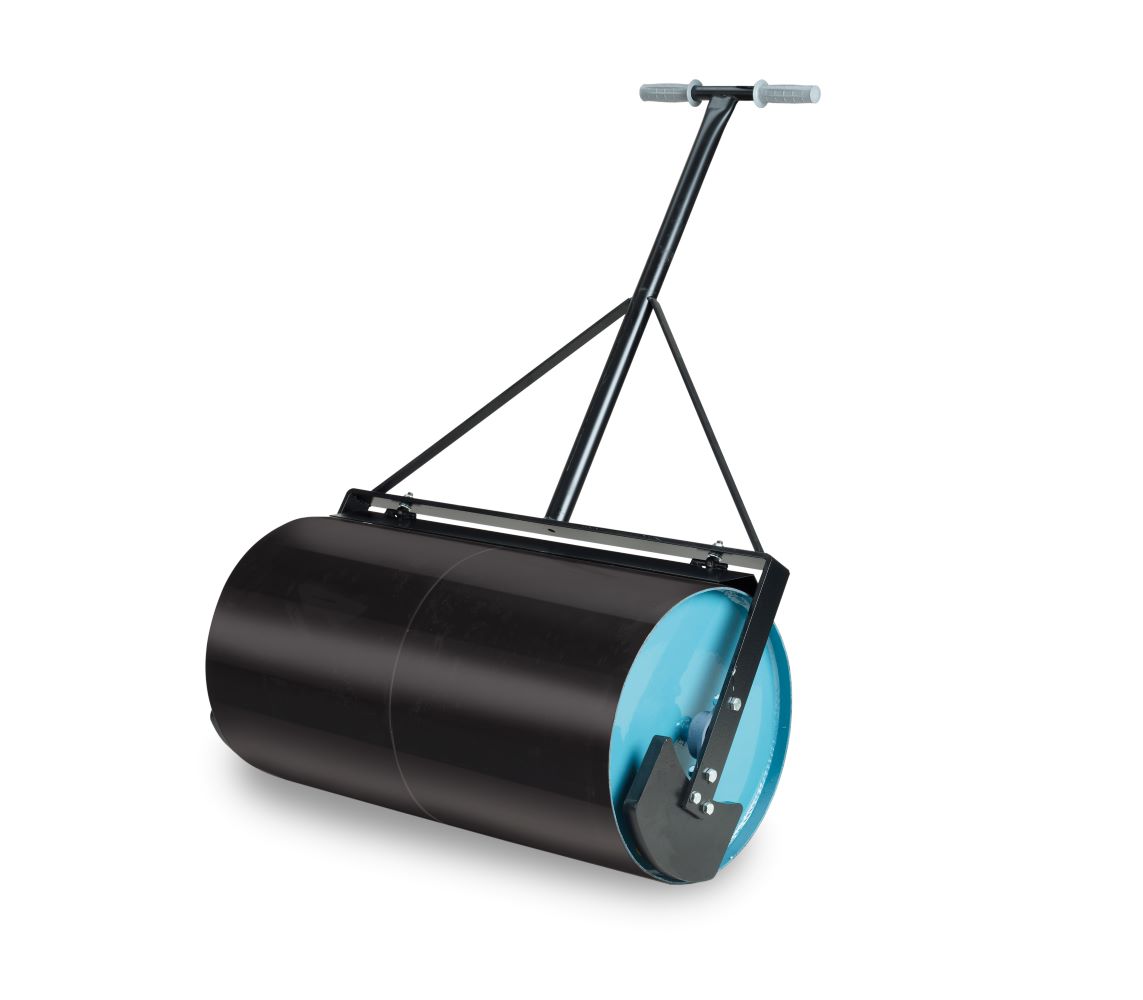

What are the benefits of the hand roller II with two-part roller body?
The 900 mm wide roller body of our hand roller II has been divided in the middle. This makes the roller much more "maneuverable" and can therefore be moved with less effort. The two roller bodies can turn against each other to make it easier to perform turning movements. A counterweight option is also available via the menu. This largely counterbalances the weight of the drawbar of the hand roller. This makes it easier to hold the drawbar during operation. The equipment of the hand roller II also includes an attached plate for scraping off the brick dust, as well as a flexible drawbar.
Technical details:Width: 90 cmLength. 160 cmWeight empty: 60 kgWeight filled: 180 kgDiameter: 450 mmColor: black/blueYou can use the hand roller II on any tennis or sports court. It was primarily designed for this purpose. However, it is also possible to carry out lawn work in private or agricultural areas. There are no limits to its versatility.
Information on ordering and deliveryIf you have any questions, please contact our customer service team. We will be happy to advise you on the right choice of products. Do you need your hand roller immediately? No problem! We usually have all items in stock at Universal Sport and can usually prepare and ship the goods the same day the order is placed.
The new SANDY was checked fundamentally and it makes the new sanding of the spring maintenance much more effective. Two helpers for the supply and half an hour time are sufficient in order to be able to spread the clay carpet like sand evenly distributed in one operation. SANDY II is easy to operate by hand and it is able to take a maximum volume of ca. 120 clay. With its size of ca. 1000 x 500 x 600 mm it is very handy and has got an ideal weight of 50 kg. The working size is 990 mm. The functional device for spreading clay was developed by experts and has been proven effectively on various courts. Even on uneven ground you get a completely smooth surface, which only has to be machined with a dragnet.
It actually borders on witchcraft when you find out at what time and with what precision spring overhauls are now carried out with this special milling machine.
Until now, groundskeeper and members had to laboriously remove the used brick dust by hand. Often too little material was removed. Tennis court surfaces were getting thicker and more impermeable. With the USP 10 tennis court milling machine, these problems are easily solved! The exact height adjustment is done by hand with 2 wing screws. It can be done independently on both sides. With this device, the milling depth can be determined with millimeter precision. The milled material is ejected in strips and can be shoveled into wheelbarrows with little effort. The power of the 5.5 HP Honda motor ensures that the work with the USP 10 tennis court milling machine is absolutely even, so that the courts remain level or become flat again. Thanks to a comprehensive service network, the maintenance and repair of the quietly running engine is guaranteed everywhere. The USP 10 tennis court milling machine rolls at the front on 2 independently mounted roller bodies. As a result, the pressure is evenly distributed so that it hardly sinks in, even when the places are defrosted in spring. The rear, profile-free solid rubber wheels and the low weight make the device extremely agile and mobile. The USP 10 tennis court milling machine fits through any access door and can easily be operated by one person.
Technical Data:Length: approx. 800 mmWidth: approx. 850 mmHeight: approx. 1000 mmCutting width: approx. 655 mmWeight: approx. 75 kgMotor: Honda, 4-stroke, 4 kW/5.5 PS
The USP tennis court roller in a proven design and quality with a new casing, improved once again. With two-part roller body with differential for better turning of the roller. The mechanically turned roller body characterizes this USP motorized roller. The 900 mm wide trailing roller prevents the roller from sinking into the tennis surface. Better noise insulation and the biodegradable hydraulic oil are second to none.
Technical data:
Engine
Honda GX 160, four-stroke engine4.0 kW = 5.5 HP at 3600 rpm.Electronic, contactless ignition,Oil warning control system, smooth running, Intake noise insulation, Easy start due to automatic decompression system
Fuel / oil
unleaded regular petrol / with biodegradable hydraulic oil!
Drive
hydraulic
Roller body
two-piece, 900 mm wide, with differential for high maneuverability, diameter Ø 500 mm
Speed
infinitely variable up to approx. 5 km/h; forwards and backwards
Working width
900 mm
Weight
empty approx. 350 kg, filled approx. 480 kg
Dimensions
length: 1800 mm, width: 985 mm, height 1100 mm

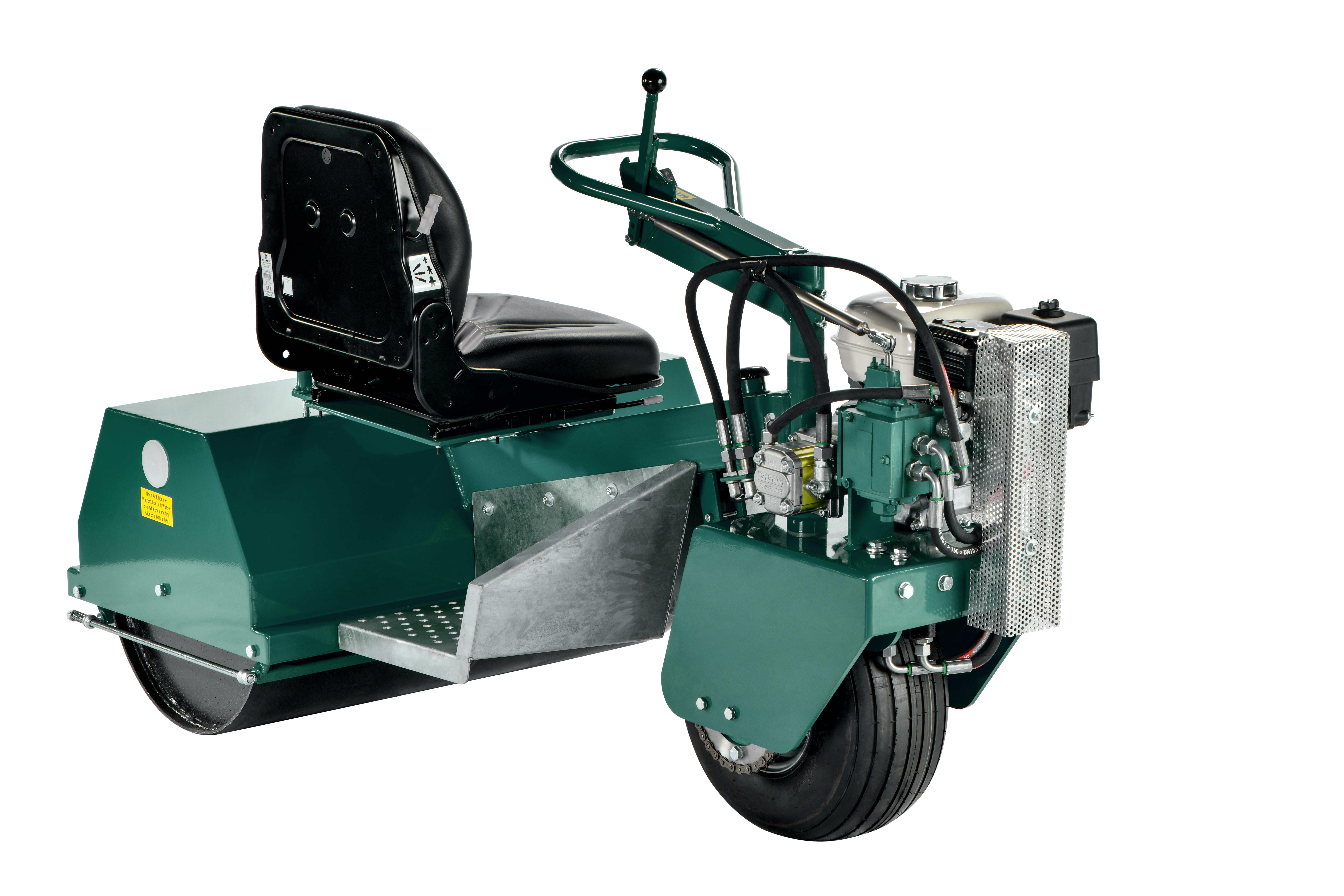

Mount motor roller with a swivelling seat, rubber-coated, broad drive front wheel, split roller body with compensation differential for high maneuverability. Simple and easy rolling on the tennis courts. Technical data: Motor: Honda GX 160, 4-stroke engine 4,0 kW at 3600 U/min. Fuel: unleaded gasoline Drive: hydraulic drive Roller: single-piece or split; width 900 mm, Ø 508 mm Speed: infinitely adjustable to approx. 6 km/h, forward / reverse Working width: 900 mm Weight: empty ca. 380 kg, full ca. 510 kg Dimensions: length: 1800 mm, width 990 mm, height: 1050 mm
