Information Board TMD 95 (1000 x 850 mm)

€495.00 *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Gesamtpreis: 495.00 *
Stück
  • 41930
Suitable for outside and inside use, absolutely weatherproof design. Made of top grade,... more

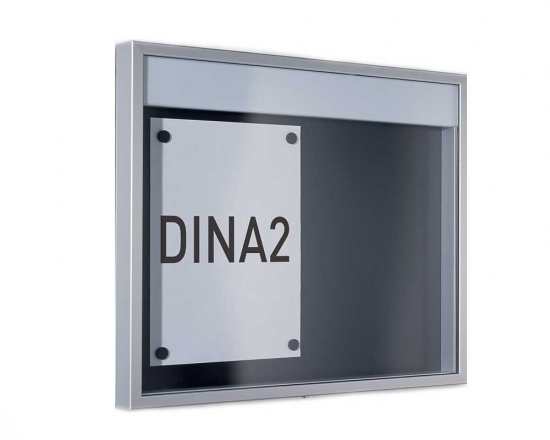

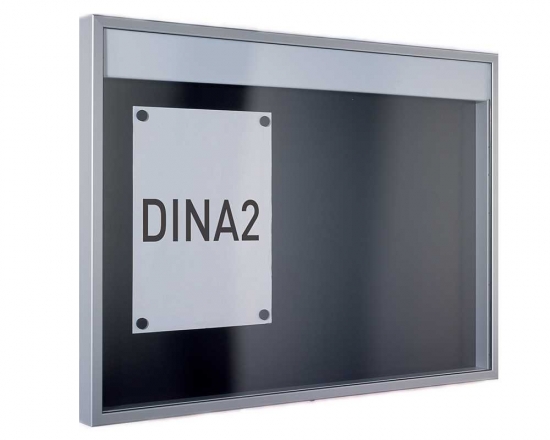

Product information "Information Board TMD 95 (1000 x 850 mm)"

Suitable for outside and inside use, absolutely weatherproof design.

Made of top grade, torsion-free aluminium sections, depth 95 mm. The

surface is anodized in matt silver (E6-EV1). State-of-the-art manufacturing processes and advanced processing machines have been combined with technical know-how to provide a solid basis for this quality product.



Basic frame

Very robust aluminium base frame with inset steel back wall with

corrosion-resistant coating.



Front frame

Aluminium front frame made of torsion-free multi-chamber aluminium

sections with integrated weatherproof rubber seal and shatter-proof

acrylic glass pane.



Front frame fitting

Special interlocking sections across the whole width so that no hinges

are required; this provides greater stability.

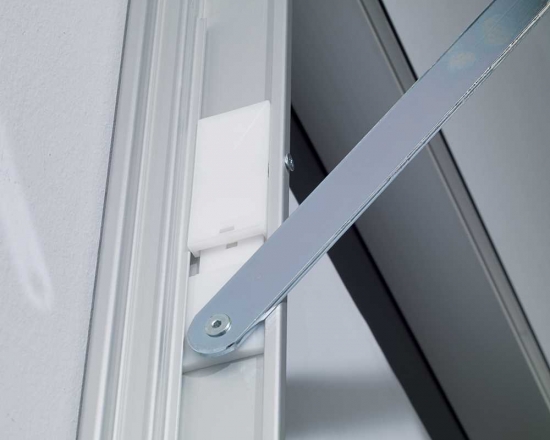

Front frame opening

The front frame opens upwards and is held open by rods which engage automatically. The catch is released by lifting the front frame up again.

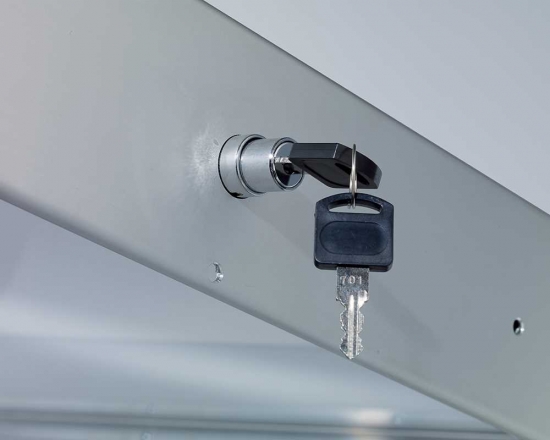

Safety lock

Safety lock located on the bottom edge with two keys. Simple and troublefree operation.

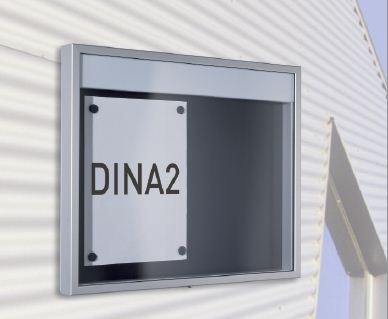

Wall fastening

The information board is fastened to the wall by means of two aluminium section rails; the board is then inserted into the rails and fixed by two screws at the bottom. All fastening elements are accommodated in the frame sections. It is not possible to dismount the information board when it is closed. This protects it very effectively from theft.

Measuring:
Width x height x depth:  1000 x 850 x 95 mm
Visible surface without lettering strip : 940 x 790 mm
Incl. magnets ( Ø 30 mm): 20 pieces
Weight : 20 kg
For outdoor and indoor usage.
Anodized (E6-EV1) aluminum housing with black magnetic board, safety lock with two keys, wall fixing set
