Compact playing posts for badminton
Super compact play posts made of 50 x 50 mm aluminum profile. The post length is 185 cm and the ground sleeves have a height of 30 cm. This makes a height of 155 cm above the ground. Supplied the pair complete with hooks, two tension straps and ground sleeves.
From our own production - Made in Germany
The Badminton Classic
Very sturdy and qualitative badminton playing posts made of aluminum in own production. The surface is technically anodized and has improved corrosion resistance. In addition, the surface hardness is significantly improved. Playing posts have a diameter of 83 mm. The posts are supplied complete with hooks, two tensioning straps and ground sleeves. Post height is 190 cm and the ground sleeves have a height of 35 cm. Accordingly, the posts maintain the specified height of 155 cm above the ground. In the middle of the posts a rail is fitted in which a hook slide with eyelets is attached in each post. Included in delivery are 2 x 30809 tension belts.

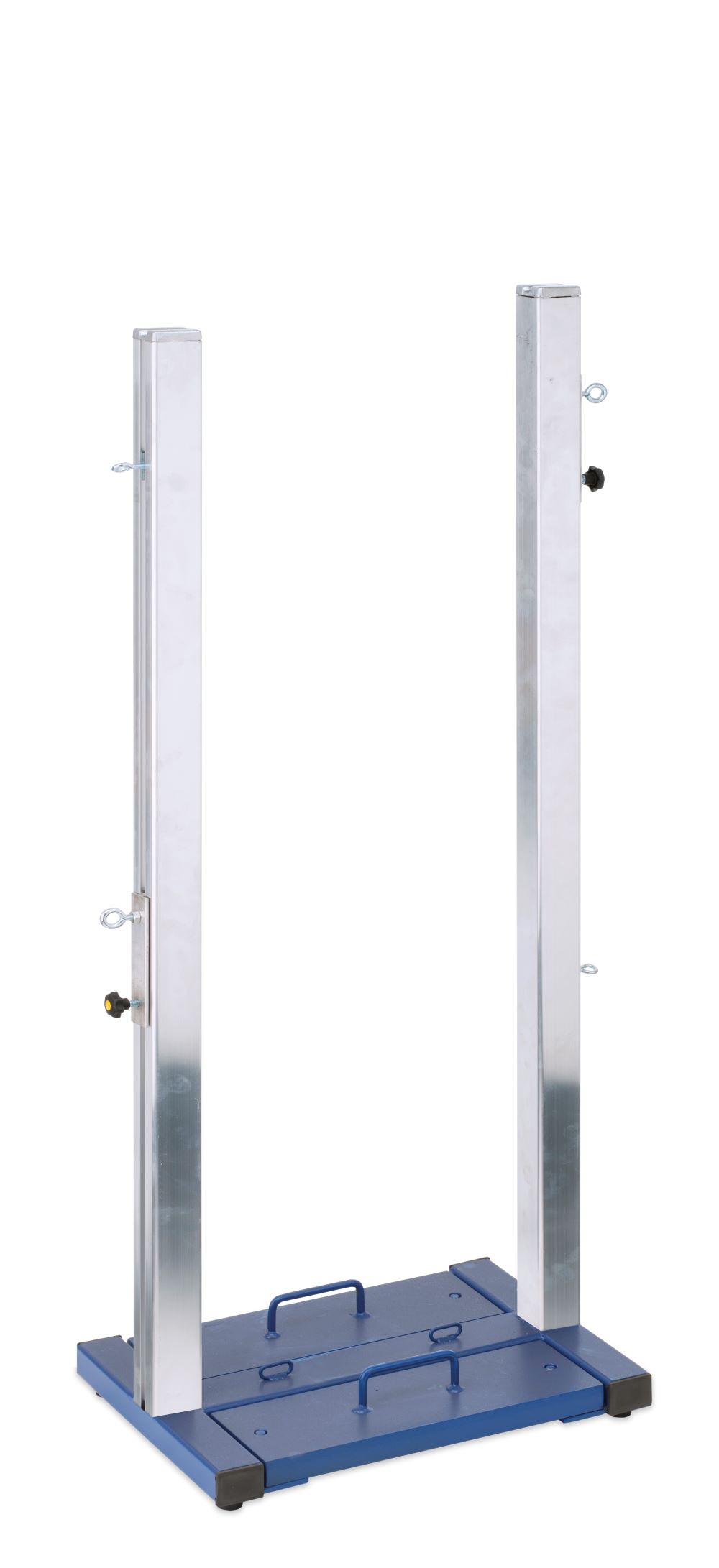

Compact badminton double post with additional weight, projection 58 cm, with ground-protecting rubber dots on the support section. Playing posts made of 80 x 80 mm aluminum tube complete with hooks and tensioning strap, painted blue. Two are required for one court.
A badminton net has the following dimensions according to the official rules of the Badminton World Federation (BWF):
Length: The net is 6.10 meters long
Height: The net is 1.55 meters high at the net post and 1.524 meters high in the middle of the court
Depth: The height from top to bottom is 0.76 meters. The net is stretched tightly at the posts so that the upper edge of the net in the middle of the court reaches the prescribed height of 1.524 meters.
Mobile Badminton Match Posts
A top product from our own production in Schönaich, Germany. This product is the result of years of expertise and experience in the construction of badminton systems. These badminton posts can be ideally used for competition as well as school sports.
A significant advantage is offered by the movable rubber wheels on the weight part. This enables the post weight incl. support of approx. 80 kg to be handled easily and safely. The individual aluminum posts with the dimensions 80x80 mm are simply plugged onto the pair of stands. They are equipped with hooks and tensioning straps. The front side of the posts is provided with an insertion for the sliding eyebolt slide. Pair of stands are painted with blue paint. The rear extension is about 70 cm and the width is about 86 cm. Equipped with floor-protecting rubber dots on the base. The post height including the base frame is 1.55 m.
At what height should a badminton net be installed?
Height at the external posts: 155 cm
Height in the middle: 152,4 cm
Multi-Game System for Badminton & Volleyball, Fistball, Tennis
This high-end product manufactured in Schönaich can be used
for almost all net sports. Two high-quality aluminum posts are combined with
steel base frames, each weighing 118 kg. The system can be used both outdoors
and indoors. The easy-to-read scale with game markings helps to set the height
optimally and in accordance with official regulations. Height adjustment is
also possible without any issues while the net is tensioned. A total of four
ball-bearing solid rubber wheels with dimensions 200/50–100 ensure ideal
transport. The unit is equipped with floor-protecting rubber pads on the
underside. The tennisnet with item number 40564 is included in the delivery.
Stepless adjustability
The 80 × 80 mm aluminum posts can be continuously adjusted
from 1.00 to 2.45 m and are equipped with a safety lock. The smooth-running
trapezoid tensioning mechanism ensures optimal net tension. A multi-purpose net
(length 6.10 m) is included in the scope of delivery.
Technical data:
Dimensions (L × W × H): 80 × 66.5 × 250 cmWeight: approx. 118 kg eachSteel posts with 80 × 80 mm profile and easy-to-read scaleStepless height adjustment between 100–245 cmCrank tensioning systemRemovable weightsSolid rubber wheels for easy transportRubber buffers protect the floor
